Pass-Through Cover Frame, Removing And Installing: Removing

-- Fold down the center armrest and open the pass-through door.

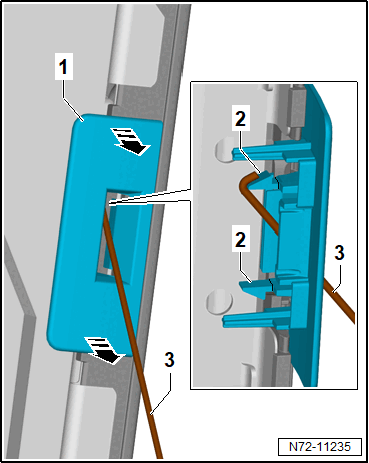

-- Release the hook -2- using the Trim Release Lever: T40207  -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the door locking mechanism trim -1- in the direction of -arrow- using a commercially available plastic wedge.

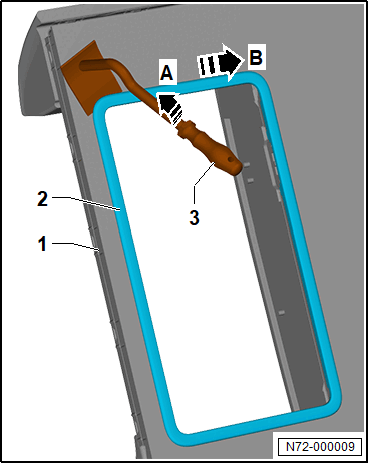

-- Pry the pass-through cover frame -2- off the rear seat backrest -1- in the direction of -arrow A- using a Trim Release Lever: T10039  -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Continue prying off starting at the upper left corner in direction of -arrow B-.

-- Remove the pass-through cover frame -2-.

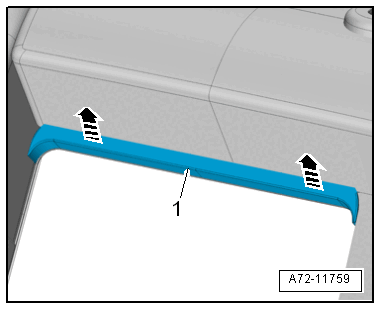

-- Press the rear seat backrest cover and cushion to the side slightly and unclip the stop strip -1- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stop strip -1-.
