Overview - Locking Mechanism

The overview shows the left side of the vehicle as an example

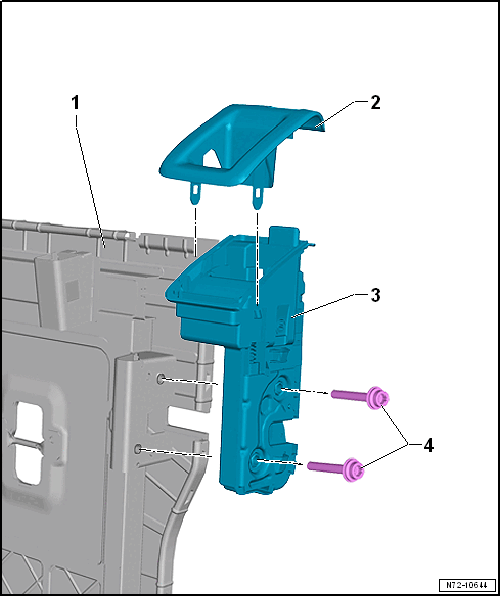

Fig 1: Exploded View Of Locking Mechanism With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Seat Backrest Frame
2. Locking Mechanism Trim
   • Refer to Locking Mechanism Trim, Removing and Installing  .
3. Rear Seat Backrest Locking Mechanism
   • Refer to Rear Seat Backrest Locking Mechanism, Removing and Installing  .
4. Bolt
   • 23 Nm
   • Quantity: 2
