Headrest, Removing And Installing: Removing

-- Release the rear seat backrest and fold it forward slightly.

-- Press and hold the height adjustment button -2- at the headrest guide -1- in the direction of -arrow A-.

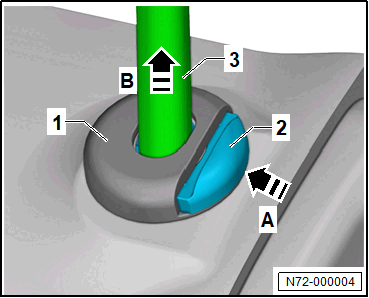

GWWN72-000004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the headrest -3- upward in the direction of -arrow B- as far as the stop.

-- Press and hold the release button -2- at the headrest guide -1- in the direction of -arrow A-.

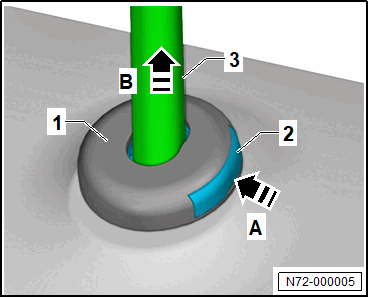

GWWN72-000005Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the headrest -3- in the direction of -arrow B- out of the headrest guide -1- and remove it.
