Headrest Guide, Removing And Installing: Removing

Tip

Three commercially available screwdrivers are required for removal. Blade height: 0.4 mm, blade width: 8 mm.

-- Remove the headrest. Refer to Headrest, Removing and Installing  .

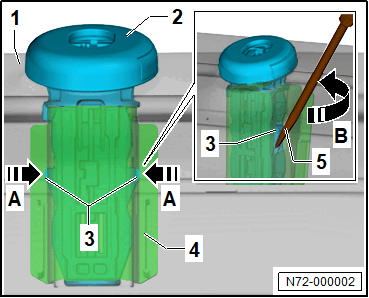

-- Press the cover with outer cushion -1- down slightly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

Insert two screwdrivers near the hooks so that the flat side of each screwdriver blade is resting on the hook.

-- Slide one screwdriver on each side sideways from the headrest tube -4- over to the hook -3-.

-- Turn both screwdrivers 90° in the direction of -arrow B- and release the hook -3- in the direction of -arrow A-.

-- Pry the headrest guide -2- out of the headrest tube -4- using a third screwdriver.
