Seat Trim Panel Bracket, Removing And Installing: Removing

-- Remove the outer seat trim panel. Refer to Outer Seat Trim Panel, Removing and Installing  .

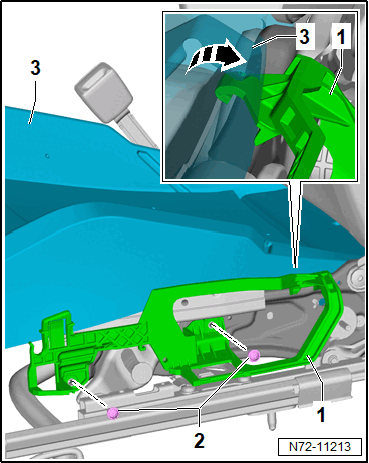

-- Remove the bolts -2-.

GWWN72-11213Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unhook the seat trim panel bracket -1- in the direction of -arrow- and remove it from the front seat -3-.
