Seat Height Adjustment Handle, Removing And Installing: Removing

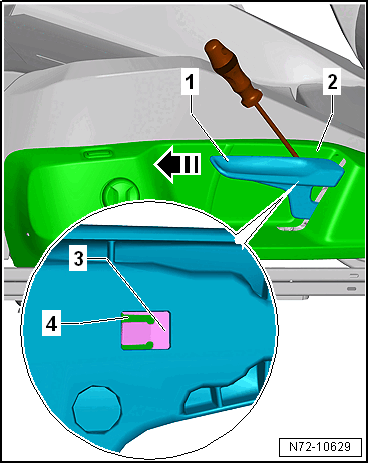

-- Pull the handle -1- as far upward as possible and hold it there.

GWWN72-10629Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the commercially available screwdriver between the handle -1- and outside seat trim panel -2- up to the clip -3-.

-- Release the clamps -3- using a commercially available screwdriver.

-- Remove the handle -1- in direction of -arrow- from the seat height adjustment lever -4-.
