Seat Height Adjustment, Removing And Installing, Power: Removing

-- Remove the seat pan cover and cushion. Refer to Seat Pan Cover and Cushion, Removing and Installing .

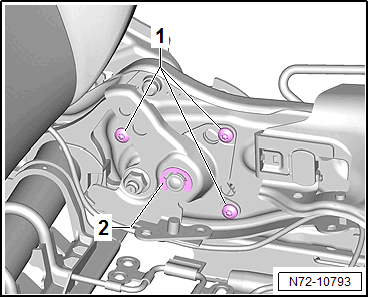

-- Remove the lock washer -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-.

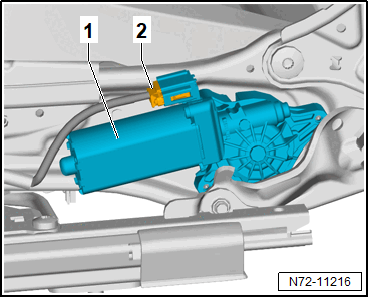

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the height adjustment motor -1-.
