Seat Height Adjustment, Removing And Installing, Manual: Removing

-- Remove the outer seat trim panel. Refer to Outer Seat Trim Panel, Removing and Installing  .

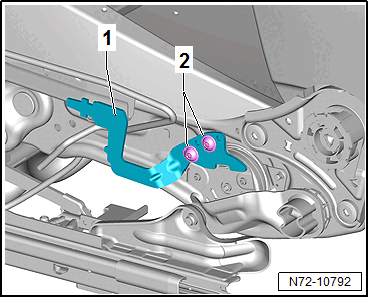

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lever for the seat height adjustment -1-.

-- Remove the lock washer -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-.

-- Remove the seat height adjustment.
