Seat Frame Wiring Harness, Removing And Installing: Removing

-- Refer to Front Seat, Mounting on Fixture for Seat Repair  .

Vehicles with Seat Position Sensor

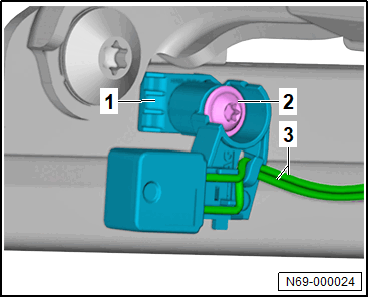

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat position sensor -1-.

Continuation for All Vehicles

-- Disconnect the connectors.

-- Unclip the wires using the Window Release Tool:T10236  .

-- Guide out and remove the seat frame wiring harness.
