Seat Frame Wiring Harness, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Route the wire in their original locations.

Vehicles with Seat Position Sensor

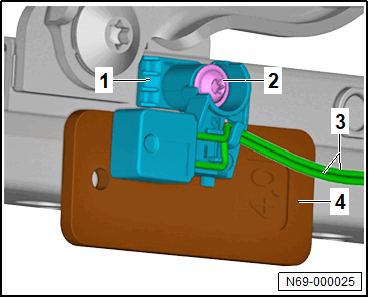

-- Hook the seat position sensor -1- into the seat pan lower frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the 4 mm plate from the Gauge - Gap Adjustment:3371  -4- in between the seat position sensor -1- and the seat pan lower frame.

-- Tighten the bolt -2-.

-- Remove the Gauge - Gap Adjustment:3371  -4-.

Continuation for All Vehicles
