Overview - Seat Pan, Manual

The overview shows the left side of the vehicle as an example

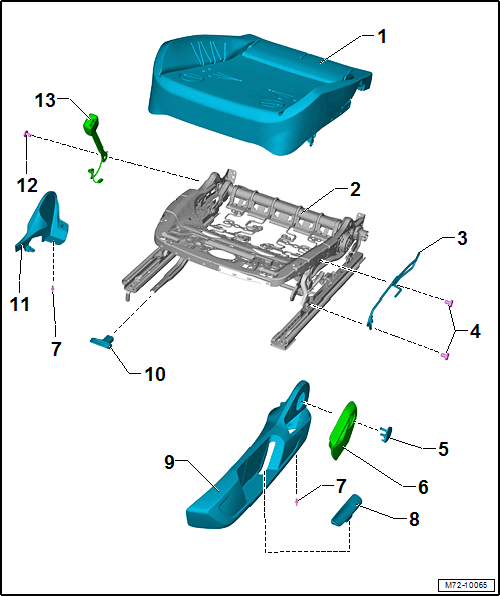

Fig 1: Exploded View Of Seat Pan, Standard Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cushion
   • Refer to Overview - Seat Pan Cover and Cushion .
   • Refer to Seat Pan Cover and Cushion, Removing and Installing .
   • Refer to Cover, Separating from Seat Pan Cushion .
2. Seat Pan
3. Seat Trim Panel Bracket
   • Refer to Seat Trim Panel Bracket, Removing and Installing  .
4. Bolt
   • 8 Nm
   • Quantity: 2
5. Cap
   • For backrest adjustment release lever
6. Release Lever
   • For backrest adjustment. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .
7. Expanding Rivet
8. Seat Height Adjustment Handle
   • Replace after removing
   • Refer to Seat Height Adjustment Handle, Removing and Installing  .
9. Outer Seat Trim Panel
   • Refer to OUTER SEAT TRIM PANEL, REMOVING AND INSTALLING
10. Handle
    • For manual seat forward/back adjustment
    • Remove by hand or separate from the handle mount using a rubber or plastic mallet.
    • Hit the seat forward/back adjustment handle all the way back on using a rubber mallet. Do not damage the surface while doing so.
11. Inner Seat Trim Panel
    • Refer to INNER SEAT TRIM PANEL, REMOVING AND INSTALLING
12. Bolt
    • Tightening specification. Refer to Overview - Front Seat Belt Latch .
13. Front Seat Belt Latch
    • Refer to Overview - Front Seat Belt Latch .
    • Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
