Overview - Seat Height Adjustment, Manual

The overview shows the left side of the vehicle as an example

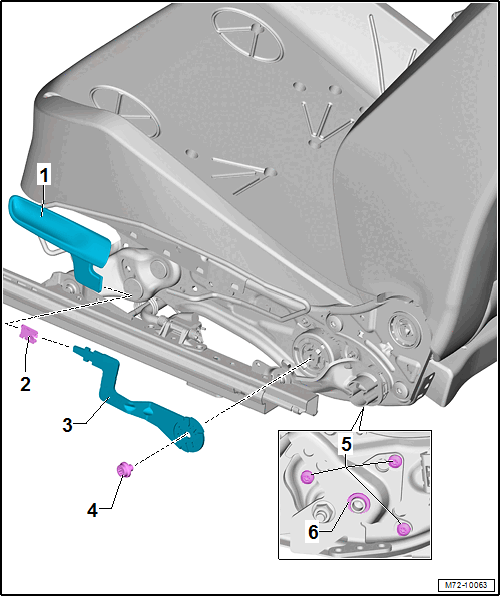

Fig 1: Exploded View Of Seat Height Adjustment; Manual Seat Height Adjustment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Seat Height Adjustment Handle
   • Refer to Seat Height Adjustment Handle, Removing and Installing  .
2. Clip
3. Lever for Seat Height Adjustment
   • Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL
4. Bolt
   • 8 Nm
5. Bolt
   • 10 Nm
   • Quantity: 3
6. Lock Washer
   • Replace after removing
