Overview - Seat Height Adjustment, Electrical

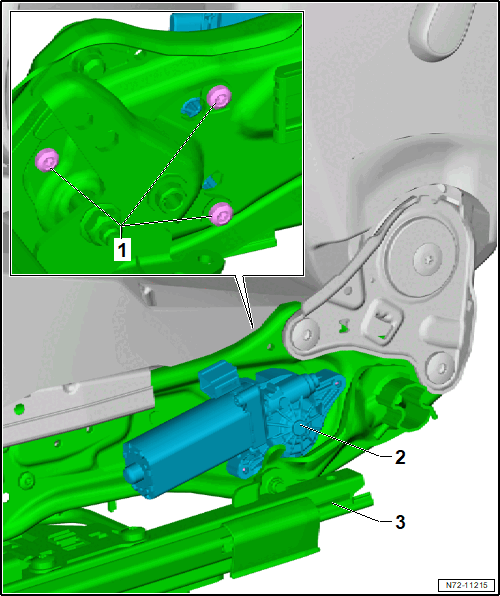

The overview shows the left side of the vehicle as an example

GWWN72-11215Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 6.5 Nm
    • Replace after removing
    • Quantity: 3
  2. Driver Seat Height Adjustment Motor -V245- / Front Passenger Seat Height Adjustment Motor -V246-
  3. Seat Pan
