Overview - Seat Angle Adjuster

The overview shows the left side of the vehicle as an example

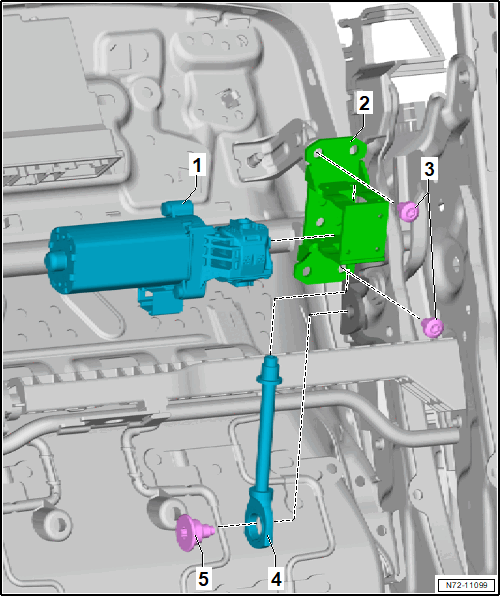

Fig 1: Exploded View Of Seat Angle Adjuster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Driver Seat Angle Adjustment Motor -V243-, Front Passenger Seat Angle Adjustment Motor -V244-
   • Refer to Driver and Front Passenger Seat Angle Adjustment Motor V243/V244, Removing and Installing  .
2. Bracket
3. Bolt
   • 10 Nm
   • Replace after removing
   • Quantity: 2
4. Adjusting Spindle
5. Bolt
   • 20 Nm
   • Replace after removing
