Overview - Lumbar Support

The overview shows the left side of the vehicle as an example

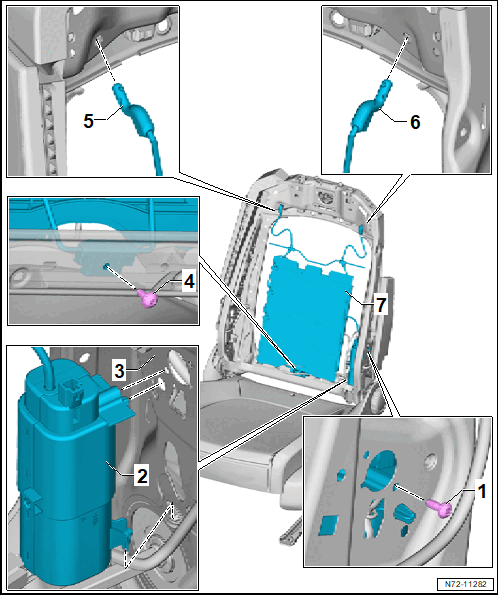

Fig 1: Exploded View Of Lumbar Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 1 Nm
2. Driver Multi-Contour Seat Compressor -V439-, Front Passenger Multi-Contour Seat Compressor -V440-
   • Cannot be replaced separately
   • Refer to Lumbar Support, Removing and Installing  .
3. Backrest Frame
4. Bolt
   • 8 Nm
5. Wire
6. Wire
7. Lumbar Support
   • Refer to Lumbar Support, Removing and Installing  .
