Lumbar Support, Removing And Installing: Removing

-- Remove the cover and cushion at the backrest. Refer to Backrest Cover and Cushion, Removing and Installing .

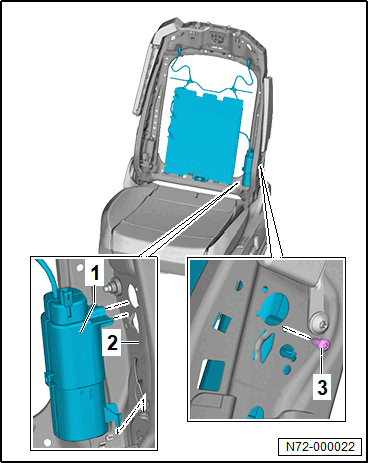

-- Remove the bolt -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the multi-contour seat compressor -1-.

-- Unhook the multi-contour seat compressor -1- from the backrest frame -2-.

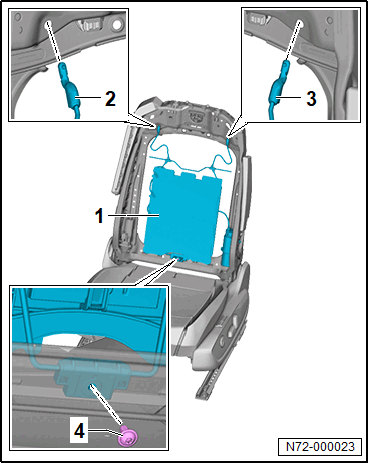

-- Remove the bolt -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the wires -2 and 3- out.

-- Remove the lumbar support -1- with the compressor for the multi-contour seat.
