Integrated Headrest, Removing And Installing: Removing

-- Separate the backrest cover and cushion. Refer to COVER, SEPARATING FROM BACKREST CUSHION .

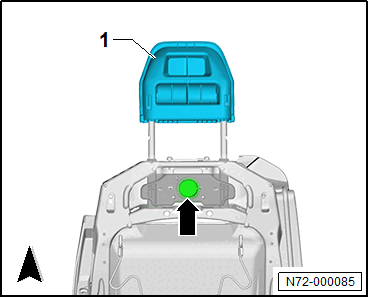

-- Press the headrest release button -arrow- and remove the integrated headrest -1-.

GWWN72-000085Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
