Headrest, Removing And Installing: Removing

-- Move the front seat to the lowest position.

-- Tilt the front backrest 45°.

Tip

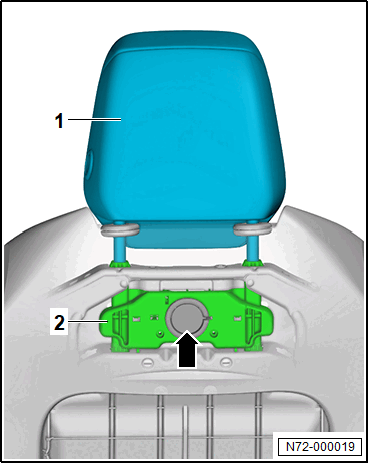

The headrest release button -arrow- is located 9 cm below the upper edge of the backrest on the headrest guide -2-.

-- Press the headrest release button -arrow- and remove the headrest -1-.

GWWN72-000019Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
