Headrest Guide, Removing And Installing, Integrated Headrest: Removing

-- Remove the cover and cushion at the backrest. Refer to Backrest Cover and Cushion, Removing and Installing .

-- Remove the integrated headrest. Refer to Integrated Headrest, Removing and Installing  .

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

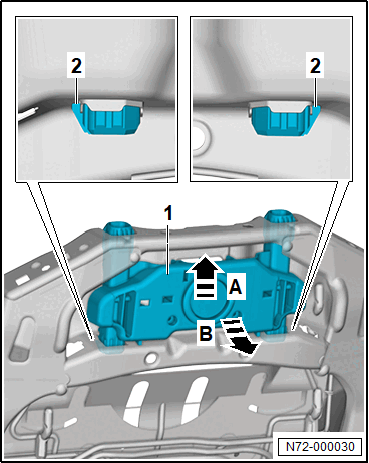

-- Release the hook -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the headrest guide -1- in direction of -arrow A- and remove in direction of -arrow B-.
