Driver/Front Passenger Seat Adjustment Control Head E470/E471, Removing And Installing: Removing

The Driver Seat Adjustment Control Head -E470- and the front Passenger Seat Adjustment Control Head -E471- will be called seat adjustment control head in the information that follows.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Remove the seat trim panel on the outer side. Refer to OUTER SEAT TRIM PANEL, REMOVING AND INSTALLING .

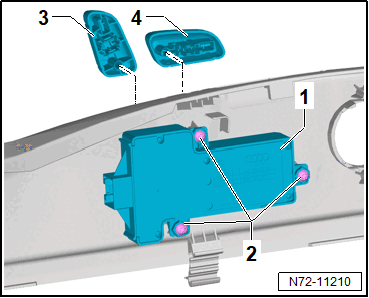

-- Pry out the switches -3 and 4- using the Release Tool: T10236  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Remove the seat adjustment control head -1-.
