Driver And Front Passenger Seat Forward/Back Adjustment Motor -V28/V31-, Removing And Installing: Removing

-- Remove the front seat belt latch. Refer to Front Seat Belt Latch, Removing and Installing .

-- Disconnect the connector for the forward/back adjustment motor.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

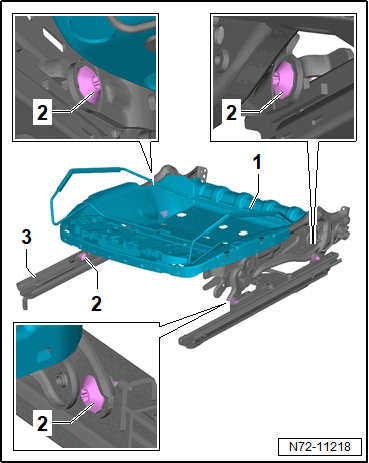

-- Unclip the wire from the seat pan -3- and move to the side.

-- Remove the bolt -2- with left-hand thread.

-- Remove the seat pan -1-.
