Driver And Front Passenger Seat Angle Adjustment Motor V243/V244, Removing And Installing: Removing

-- Refer to Front Seat, Mounting on Fixture for Seat Repair  .

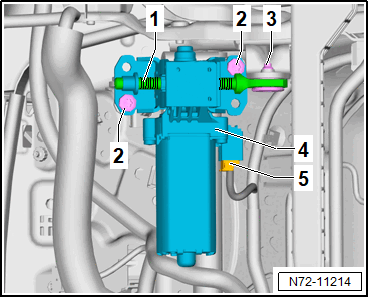

-- Disconnect the connector -5-.

GWWN72-11214Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3-.

-- Remove the bolts -2-.

-- Remove the seat angle adjustment motor -4-.
