Rear Emblem, Removing And Installing: Removing

-- Remove the Center Tail Lamp -MX13-. Refer to CENTER TAIL LAMP, REMOVING AND INSTALLING .

-- Heat up the emblem using the Hot Air Blower:VAG1416  . Refer to Installation Requirements for Components with Adhesive Tape .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

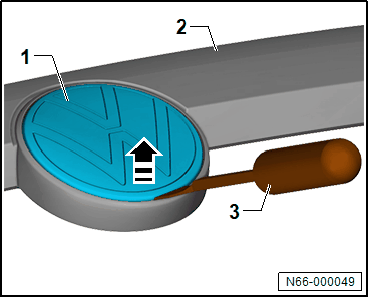

-- Position the commercially available plastic wedge -3- between the emblem on the rear -1- and the Center Tail Lamp -MX13- -2-.

-- Pry out the emblem on the rear -1- in the direction of -arrow-.
