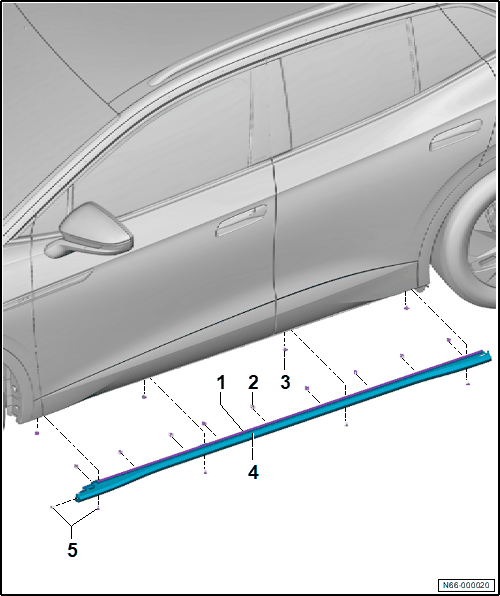

Overview - Side Sill Trim Panel

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Adhesive Tape
2. Clip
   • Quantity: 9
3. Expanding Nut
   • Quantity: 4
4. Side Sill Trim Panel
   • Replace after removing
   • Refer to Side Sill Trim Panel, Removing and Installing  .
5. Bolt
   • 2 Nm
   • Quantity: 5
