Overview - Instrument Panel

The overview is described as an example for a LHD vehicle

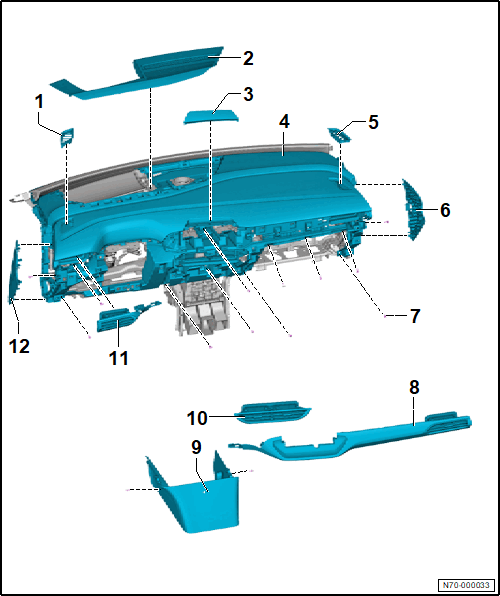

Fig 1: Exploded View Of Instrument Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Side Defroster Vent
   • Refer to Side Defroster Vent, Removing and Installing  .
2. Cover for Instrument Panel/Windshield Projection (Head Up Display)
   • Depending on equipment/version
   • Refer to Instrument Panel/Windshield Projection (Head-Up Display) Cover, Removing and Installing  .
   • Vehicles without windshield projection. Refer to Speaker Trim, Removing and Installing  .
3. Information Electronics Cover
   • Refer to Information Electronics Cover, Removing and Installing .
4. Instrument Panel
   • Refer to Instrument Panel, Removing and Installing  .
5. Side Defroster Vent
   • Refer to Side Defroster Vent, Removing and Installing  .
6. Instrument Panel Side Cover
   • Refer to Instrument Panel Side Cover, Removing and Installing  .
7. Bolt
   • 1.5 Nm
   • Quantity: 14
8. Front Passenger Side Instrument Panel Decorative Trim
   • Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING
9. Tunnel Support Cover
   • Refer to Tunnel Support Cover, Removing and Installing  .
10. Center Vent
    • Refer to Center Vent, Removing and Installing  .
11. Driver Side Instrument Panel Decorative Trim
    • Refer to DRIVER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING
12. Instrument Panel Side Cover
    • Refer to Instrument Panel Side Cover, Removing and Installing  .
