Rear Lid Control Module J605, Removing And Installing: Removing

The Rear Lid Control Module -J605- will be called the control module in the information that follows.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

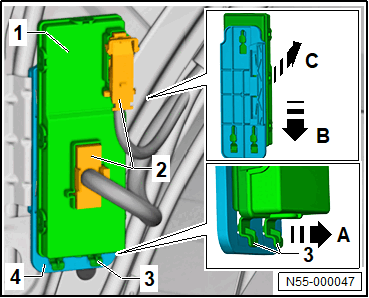

-- Disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -3- in the direction of -arrow A- and push the control module -1- all the way in the direction of -arrow B-.

-- Remove the control module -1- in the direction of -arrow C- from the bracket for the control module -4-.
