Power Rear Lid Opening Control Module Bracket J938, Removing And Installing: Removing

-- Remove the Power Rear Lid Opening Control Module - J938-. Refer to POWER REAR LID OPENING CONTROL MODULE J938  .

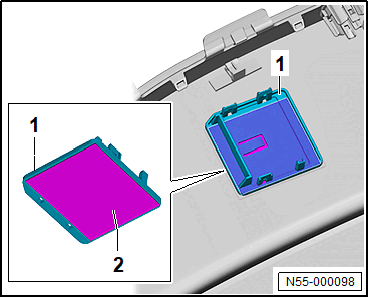

-- Heat up the bracket -1- in the area of the adhesive tape -2-. Refer to Installation Requirements for Components with Adhesive Tape .

GWWN55-000098Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1-.
