License Plate Holder, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

Bumper Cover Without Holes

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing  .

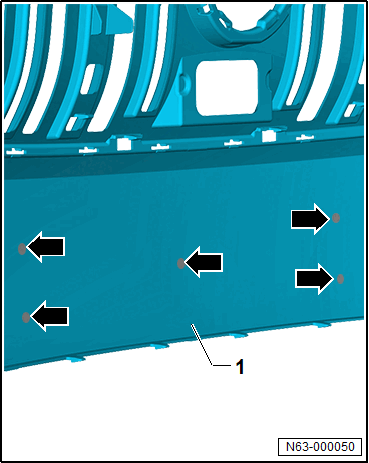

The locations of the holes -arrows- are marked on the inner side of the bumper cover -1-.

-- Drill the required number of holes (8 mm diameter) -arrows- in the bumper cover -1-.

GWWN63-000050Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bumper cover. Refer to Bumper Cover, Removing and Installing  .
