Fender, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

If the A-Pillar was Replaced

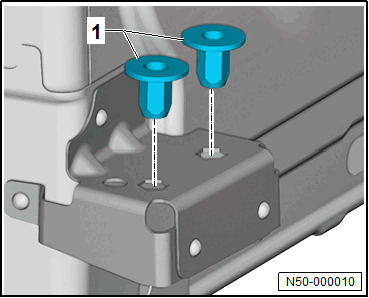

-- Insert the pop rivet nut -1-. Refer to the appropriate Electronic Parts Information.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

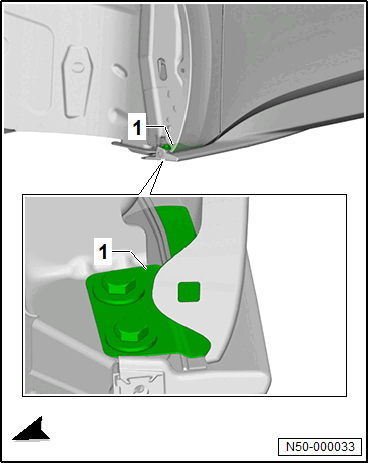

-- Wax the threaded connection to the side sill -1-. Refer to the appropriate Service Information .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align the fender without tension.

-- Check the body gap dimensions using the Gauge - Gap Adjustment:3371  . Note the appropriate Service Information Front when doing this.
