End Panel, Removing And Installing: Installing

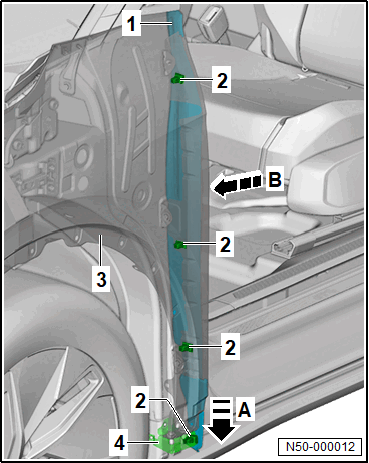

-- Insert the end panel -1- in the direction of -arrow A- on the fender -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the end panel -1- in the direction of -arrow B- on the fender -3- until the hook -2- locks.

Conditions

• The lower hook -2- must engage in an angle on the fender -4-.

Further installation is performed in reverse order of the removal.
