Front Center Console Ambient Lighting Bulb 1 L193, Removing And Installing: Removing

-- Remove the center console insert. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

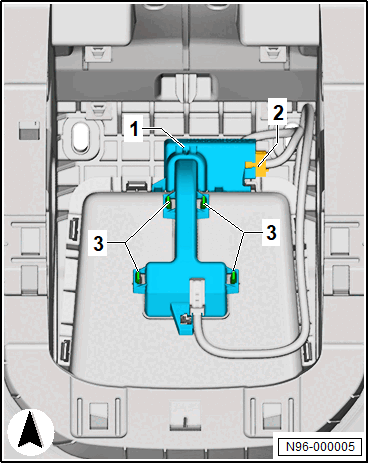

-- Release the locking tabs -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove ambient lighting -1-.

-- Disconnect the connector -2-.

-- Remove ambient lighting -1-.
