Front Roof Module WX3, Removing And Installing: Removing
CAUTION:
Risk of damaging component surfaces.
- When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.

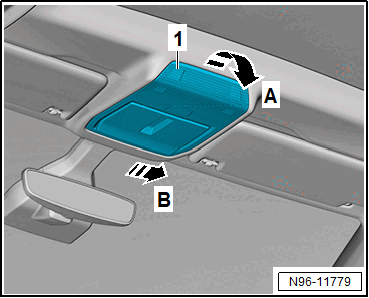

-- Pry out the roof module -1- in the rear area in the -direction of the arrow A- using a commercially available plastic wedge.
-- Disconnect the connectors.
-- Remove the roof module -1- in the -direction of the arrow B-.
