Front Roof Module WX3, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

Roof module with clip

The clip must be replaced.

Continuation

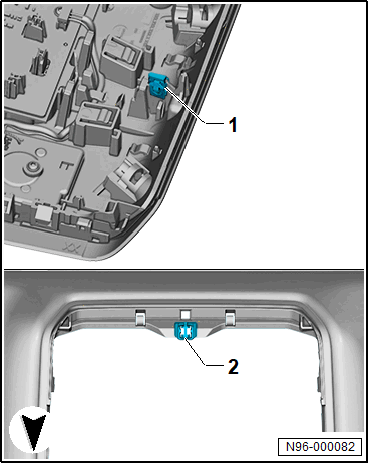

-- Remove the clip -1- from the roof module.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert a new clip in the headliner -2-.
