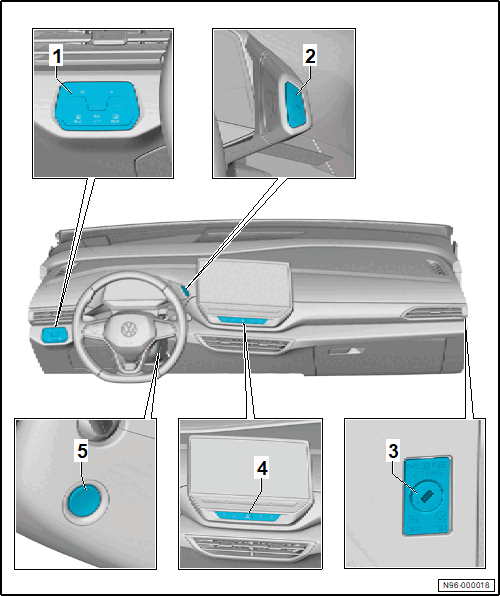

Component Location Overview - Instrument Panel Controls

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Illumination Control Head -EX59-
- With Light Switch -E1-
- With Instrument Panel and Switch Illumination Dimmer Switch -E20-, Rear Fog Lamp Button -E314-, Rear Window Defogger Button -E230-, Automatic High Beam Button -E854-, Position Lamp Button -E855-, Low Beam Button -E856-, Defrost Button -E782-
- With Rear Fog Lamp Indicator Lamp -K13-, Rear Window Defogger Indicator Lamp -K10-
- Refer to Illumination Control Head EX59, Removing and Installing .
Electromechanical Parking Brake Button -E538-
- With Electromechanical Parking Brake Indicator Lamp -K213-
- In Steering Column Electronics Control Module -J527-
- Refer to Steering Column Electronics Control Module J527, Removing and Installing .
Front Passenger Airbag Deactivation Key Switch -E224-
- Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH E224, REMOVING AND INSTALLING .
Switch Module in Instrument Panel, Center -EX22-
- With Control Unit 1 for Driving and Convenience Functions -E791-
- With Emergency Flasher Button -E229-
- With Driver Assistance Systems Button -E617-
- With Driving Profile Selection Button -E735-
- With A/C and Heater Switch -E85-
- Refer to Switch Module in Instrument Panel, Center EX22, Removing and Installing .
Start System Button -E378-
- Refer to Start System Button E378, Removing and Installing .
