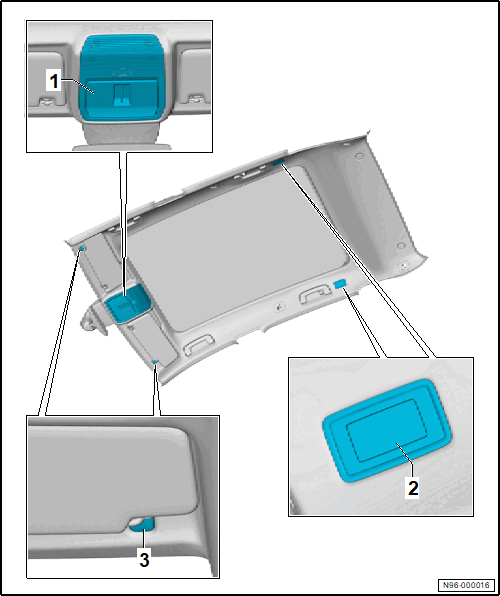

Component Location Overview - Roof Trim Panel Controls, Vehicles With Sunroof

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Roof Module -WX3-
   • With Left Front Reading Lamp -W65-, Right Front Reading Lamp -W66-
   • With Emergency Call Button -E276-, Roof Shade Button 1 -E584-
   • With Front Interior Lamp Button -E326-, Rear Interior Lamp Button -E327-
   • With Left Front Reading Lamp Button -E633-, Right Front Reading Lamp Button -E634-
   • Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Refer to FRONT ROOF MODULE WX3, REMOVING AND INSTALLING  .
2. Left Rear Interior Lamp -W47- / Right Rear Interior Lamp -W48-
   • Refer to Rear Interior Lamp/Reading Lamp, Removing and Installing  .
3. Sun Visors
   • With Left Vanity Mirror Contact Switch -F298- /Right Vanity Mirror Contact Switch -F299-
   • Refer to SUN VISOR, REMOVING AND INSTALLING .
