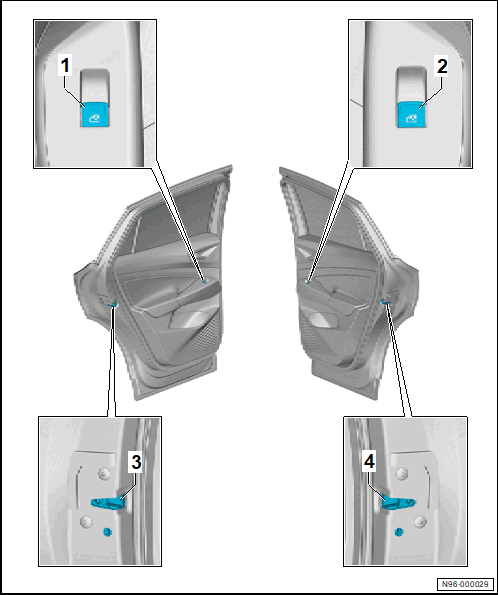

Component Location Overview - Controls In Rear Doors
The overview is described as an example for a LHD vehicle
- Control Head in Driver Side Rear Door -EX61-
- With Driver Side Rear Power Window Button -E711-
- With Push Button Illumination Bulb -L76-
- Refer to Door Power Window Switch/Door Control Head, Removing and Installing .
- Control Head in Passenger Side Rear Door -EX60-
- With Passenger Side Rear Power Window Button -E713-
- With Push Button Illumination Bulb -L76-
- Refer to Door Power Window Switch/Door Control Head, Removing and Installing .
- Driver Side Rear Door Lock Unit -VX83-
- RHD: Passenger Side Rear Door Lock Unit -VX84-
- With Driver Side Rear Door Contact Switch -F505-
- Refer to DRIVER/PASSENGER SIDE REAR WINDOW REGULATOR MOTOR V471/V472, REMOVING AND INSTALLING .
- Passenger Side Rear Door Lock Unit -VX84-
- RHD: Driver Side Rear Door Lock Unit -VX83-
- With Passenger Side Rear Door Contact Switch -F506-
- Refer to DRIVER/PASSENGER SIDE REAR WINDOW REGULATOR MOTOR V471/V472, REMOVING AND INSTALLING .
