Windshield Wiper Motor V, Removing And Installing: Removing

If the windshield wiper motor is replaced, the test plan for replacing the windshield wiper motor must be performed.

-- Perform the "windshield wiper motor, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

CAUTION:

There is a risk of bruising by moving and turning components of the windshield wiper mount.

- Do not hold the windshield wiper mount at locations with turning components.

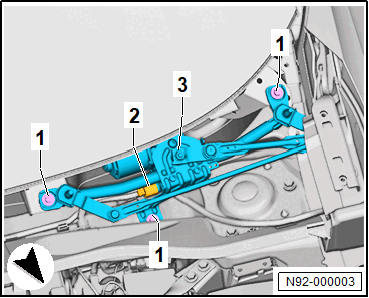

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the windshield wiper motor -3-.
