Windshield Wiper Arms, Removing And Installing: Removing

-- Refer to Windshield Wiper, Bringing into Service Position  .

-- Pry off the caps -3- with a suitable screwdriver.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the nuts -2- several turns.

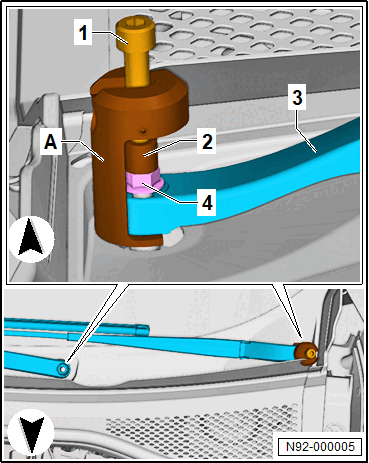

-- Position the puller -A- onto the wiper arms -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the thrust piece -2-.

-- Turn the bolts -1- clockwise until the windshield wiper arms -3- are removed from the wiper arm shafts.

-- Remove the puller -A-.

-- Remove the nuts -4-.

-- Remove the wiper arms -3-.
