Rain/Light Recognition Sensor G397, Removing And Installing: Removing
If the sensor has been replaced, then it must be coded:
-- Perform the "Rain/Light Recognition Sensor, Replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation
-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

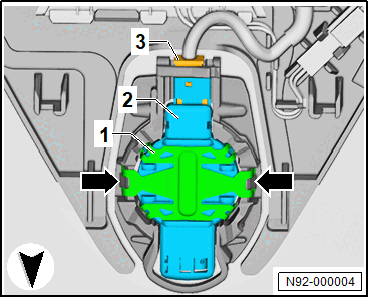

-- Disconnect the connector -3-.
-- Release the retainers -arrows-.
CAUTION:
Risk of damaging the connecting pad by removing to quickly.
- Keep to a wait time of at least 1 minute so that the connecting pad can release the tension.
-- Carefully remove the sensor -2- starting at the top from the interior rearview mirror baseplate.
-- Remove the sensor -2-.
