Windshield Washer Pump V59, Removing And Installing: Removing

Vehicles with adjusting element

-- Actuator, removing

Continuation for all vehicles

Vehicles without adjusting element

-- Loosen the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

Continuation for all vehicles

-- Place a commercially available drip tray under the washer fluid reservoir.

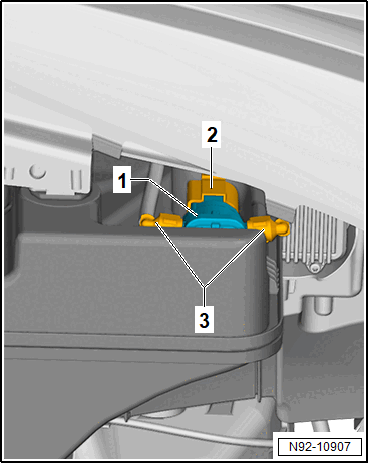

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the windshield and rear window washer pump -1- upward.

-- Release and remove the washer fluid hoses -3-.
