Rear Window Wiper Motor V12, Removing And Installing: Removing

-- Remove the windshield wiper arm. Refer to Windshield Wiper Arm, Removing and Installing  .

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

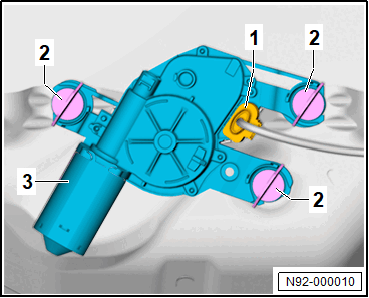

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clip -2- counter-clockwise.

-- Remove the rear window wiper motor -3-.
