Washer Nozzle, Removing And Installing, Rear Window Washer System: Removing

-- Remove the spoiler trim support. Refer to SUPPORT FOR SPOILER TRIM, REMOVING AND INSTALLING .

-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

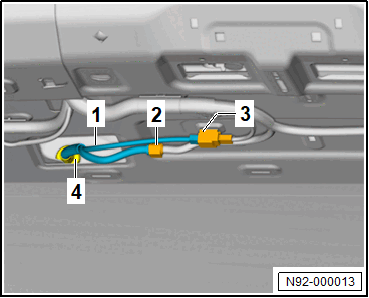

-- Release and remove the washer fluid hose -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.

-- Remove the wiring harness -1- with grommet -4- rearward.

-- Pull the washer nozzle with the washer fluid hose -1- and the wire -3- through the grommet -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the washer nozzle with washer fluid hose -1- from the wire -3-.

-- Remove the washer nozzle with washer fluid hose -1-.
