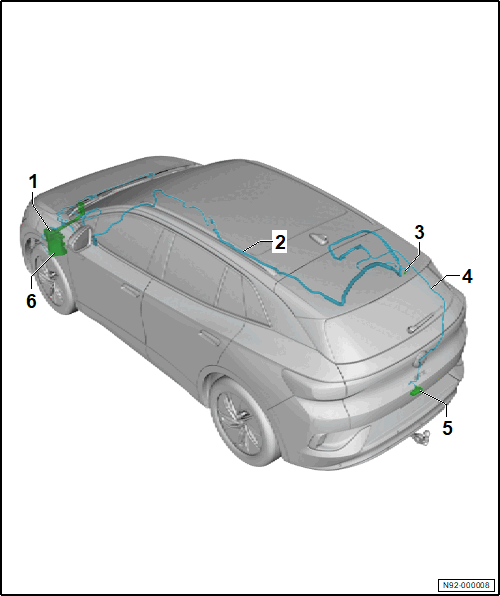

Overview - Rear Window Washer System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Washer Fluid Reservoir
   • Refer to Washer Fluid Reservoir, Removing and Installing  .
2. Washer Fluid Hose
   • In the sill to the washer nozzle from rear window washer system
3. Washer Nozzle from Rear Window Washer System
   • Model-dependent
   • Refer to WASHER NOZZLES, REMOVING AND INSTALLING  .
4. Washer Fluid Hose
   • In the rear lid to the rearview camera washer nozzle
5. Rearview Camera Washer Nozzle
   • Refer to WASHER NOZZLE, REMOVING AND INSTALLING  .
6. Windshield and Rear Window Washer Pump -V59-
   • Refer to WINDSHIELD WASHER PUMP V59, REMOVING AND INSTALLING  .
