Overview - Head Curtain Airbag

The overview shows the right side of the vehicle as an example

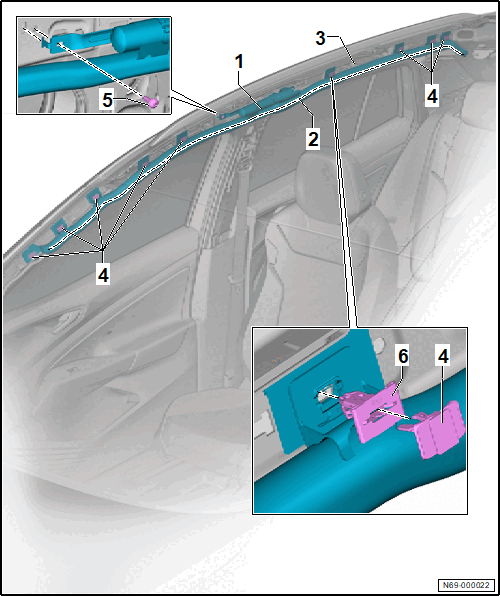

Fig 1: Head Curtain Airbag

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Head Curtain Airbag
   • With Driver Head Curtain Airbag Igniter -N251- or Front Passenger Head Curtain Airbag Igniter -N252-
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
2. Anti-Rotation Protection Line
3. Body
4. Clip
   • Replace after removing
   • Quantity: 9
5. Bolt
   • 4.5 Nm
   • Replace after removing
6. Clip
   • Replace after removing
   • Quantity: 9
