Head Curtain Airbag With Igniter, Removing And Installing: Removing

-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the headliner. Refer to Headliner, Removing and Installing .

-- Unlock the connector lock.

-- Disconnect the connector.

Tip

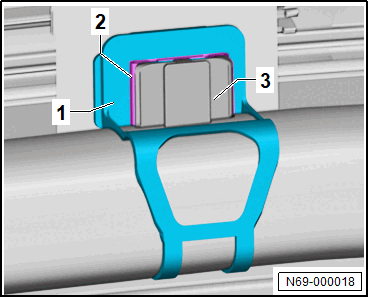

The head curtain airbag is secured to the body with a bracket -1-, clamp -2-, and clip -3-.

-- Remove the clip -3- from the clamp -2- using commercially available cutting pliers.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

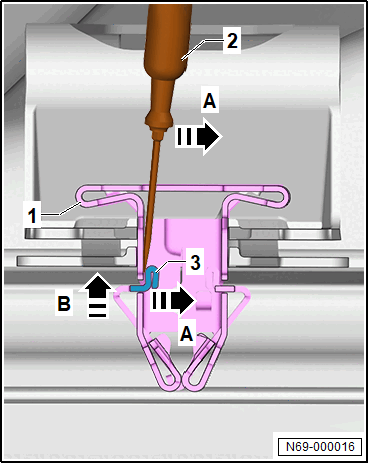

-- Position a small screwdriver -2- in the upper left clamp -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the hook -3- in the direction of -arrow A- and press and hold the clamp -1- in the direction of -arrow B- using a commercially available plastic wedge.

-- Repeat the process on the second hook at the lower right.

-- Remove the clamp -1- with head curtain airbag from the mount on the body.

-- Remove the rest of the clamps as described.

North American Vehicles:

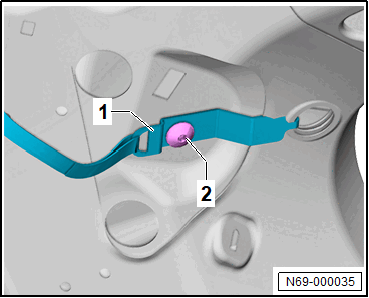

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the retaining strap -1-.

Continuation for All Vehicles

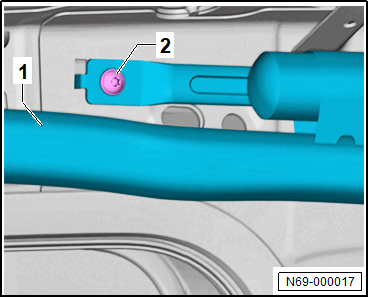

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the head curtain airbag -1-.
