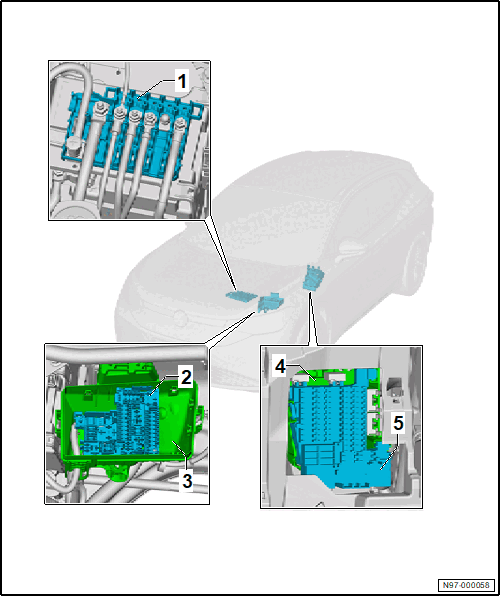

Component Location Overview - Relay Panel And Fuse Panel

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Fuse Panel A -SA-
   • Refer to Fuse Panel A SA, Removing and Installing  .
2. Fuse Panel B -SB-
   • Refer to Fuse Panel B SB, Removing and Installing  .
3. E-Box
   • Refer to E-Box, Removing and Installing  .
4. Bracket for the Fuse Panel C -SC-
   • Refer to FUSE PANEL C SC, REMOVING AND INSTALLING
   • Refer to FUSE PANEL C SC, REMOVING AND INSTALLING  .
5. Fuse Panel C -SC-
   • Refer to Fuse Panel C SC, Removing and Installing  .
