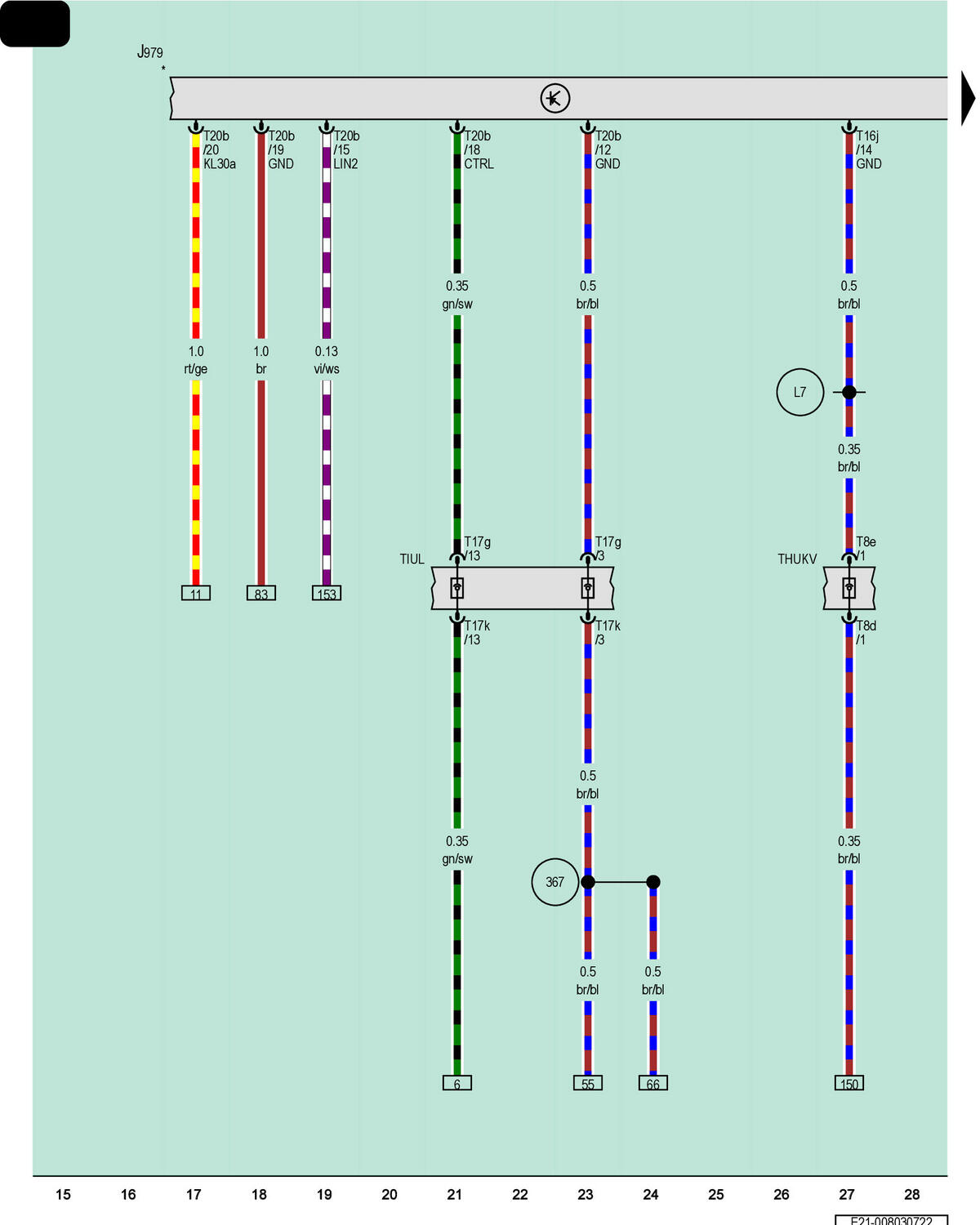

Heating And Air Conditioning Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J979

Heating and Air Conditioning Control Module

T8d

8-Pin Connector, Black

T8e

8-Pin Connector, Black

T16j

16-Pin Connector, Black

T17g

17-Pin Connector, Red

T17k

17-Pin Connector, Red

T20b

20-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

TIUL

Coupling Point in Interior, Bottom Left

367

Ground Connection 2 (in Main Wiring Harness)

L7

Connection 3 (in A/C Unit Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram
