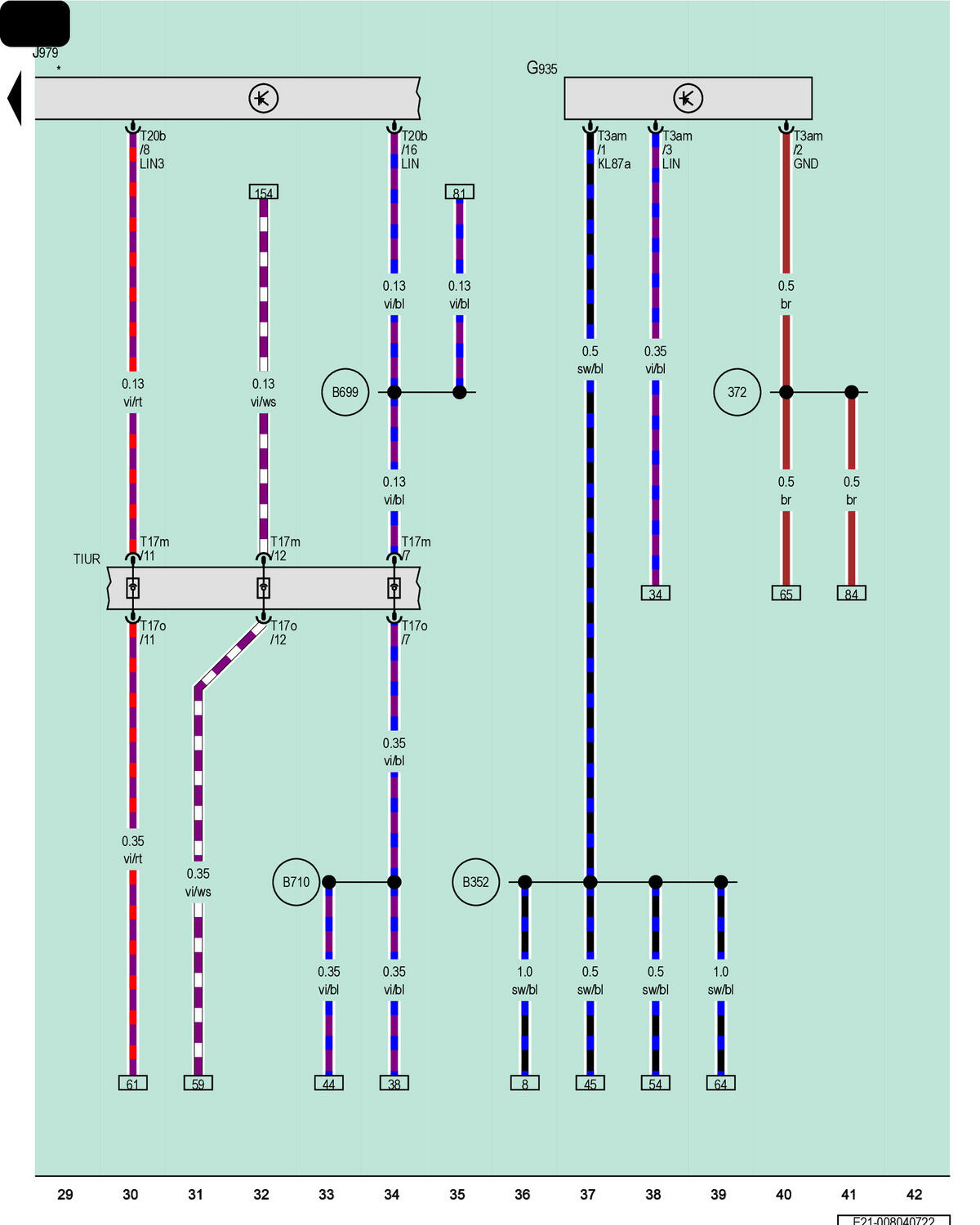

Exterior Air Quality And Humidity Sensor, Heating And Air Conditioning Control Module
G935
Exterior Air Quality and Humidity Sensor
J979
Heating and Air Conditioning Control Module
T3am
3-Pin Connector, Brown
T17m
17-Pin Connector, Black
T17o
17-Pin Connector, Black
T20b
20-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
372
Ground Connection 7 (in Main Wiring Harness)
B352
Positive Connection 3 (87a) (in Main Wiring Harness)
B699
LIN Bus Connection 4 (in Main Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
