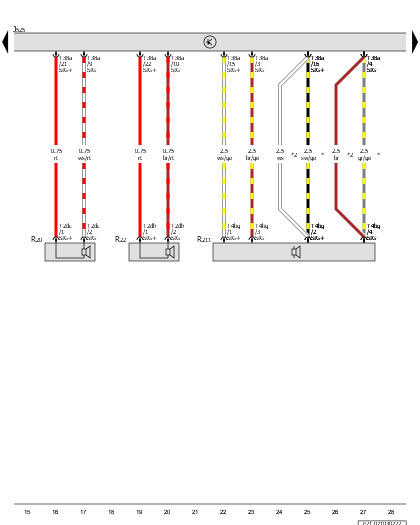

Digital Sound System Control Module, Left Front Treble Speaker, Right Front Treble Speaker, Subwoofer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J525

Digital Sound System Control Module

R20

Left Front Treble Speaker

R22

Right Front Treble Speaker

R211

Subwoofer

T2dc

2-Pin Connector, Black

T2dh

2-Pin Connector, Black

T4bg

4-Pin Connector, Black

T38a

38-Pin Connector, Black

*

Through November 2020

*2

From November 2020
