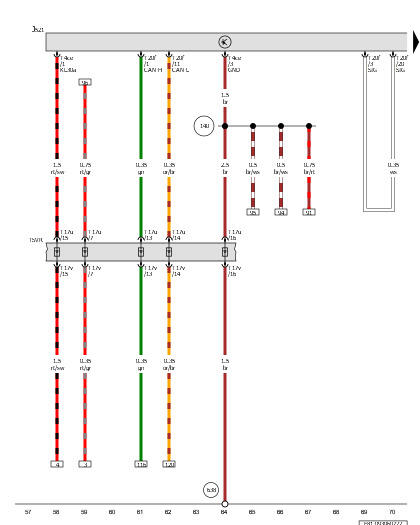

Front Passenger Memory Seat Control Module

GWWE81-093060722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J521

Front Passenger Memory Seat Control Module

T4ce

4-Pin Connector, Black

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T20f

20-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

638

Ground Connection on Right A-Pillar
